COLOR

470

Displacement(cc)

54 /11000

Max. Power(kW/rpm)

48/9500

Max. Torque(N.m/rpm)

175

Curb Weight(kg)

SPECS

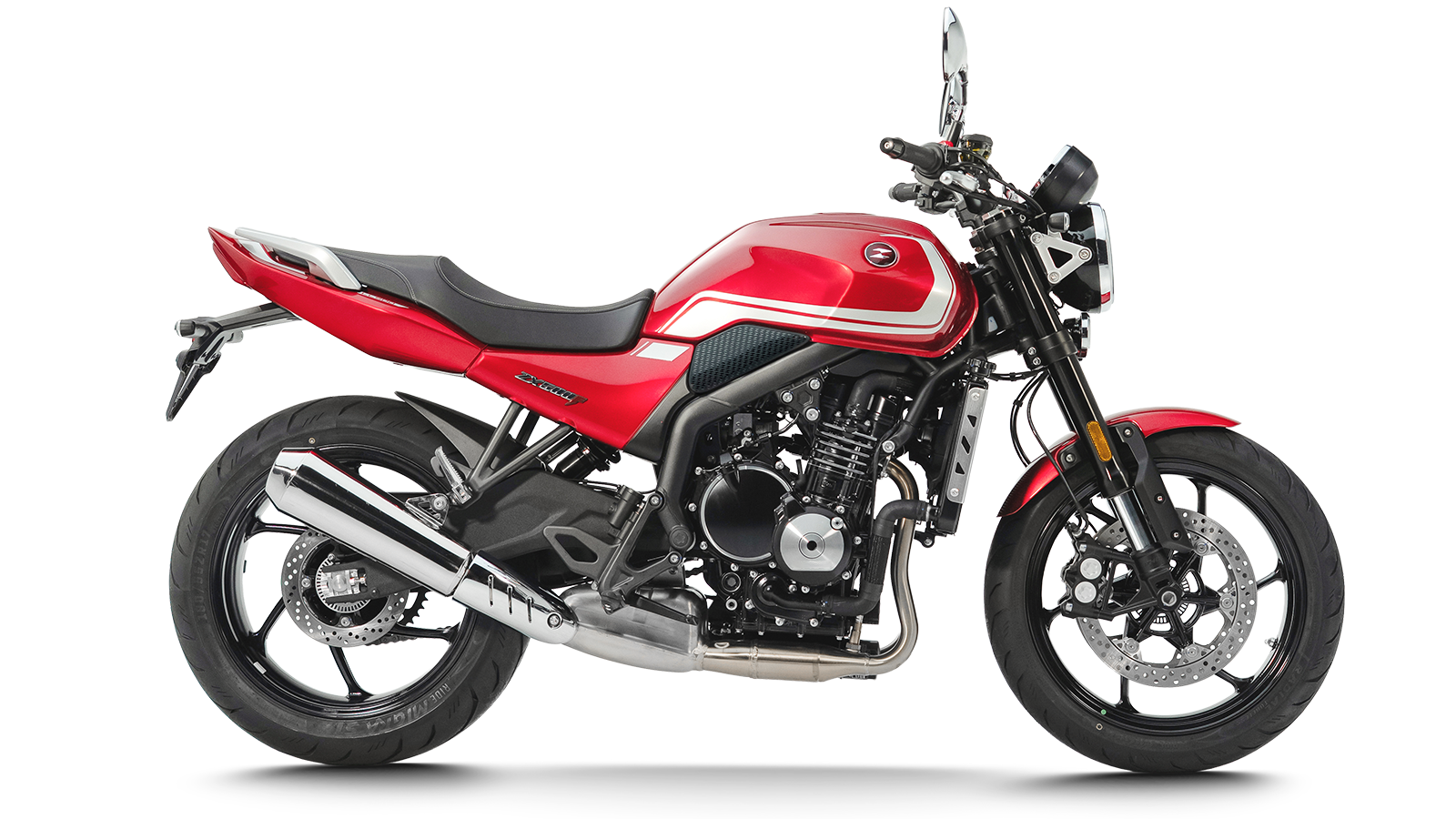

  • 500F
  • DIMENSIONS
  • CHASSIS
  • ENGINE
  • Length x Width x Height(mm)2015×805×1090
  • Wheel base(mm)1395
  • Seat height(mm)795
  • Fuel Capacity(L)15.5
  • Curb weight(kg)175
  • Dry weight(kg)165
  • Steering angle(°)33.5
  • Rake Angle((°)24.5
  • FrameDouble Cradle Frame With Steel Trellis Structure
  • Rear Swing ArmNormal Swing Arm(Aluminum Alloy)
  • Front SuspensionInverted, Adjustable Damping
  • Tire CST S1
  • Front Wheel Size120/70 ZR17
  • Rear Wheel Size180/55 ZR17
  • RimAluminum alloy cast front MT3.5*17 rear MT5.5*17
  • Front CaliperFloating Caliper
  • Front Disc300mm dual floating disc
  • Rear Caliper1-piston floating caliper(TAISKO)
  • Rear Disc220mm single disc
  • Type4 inline-cylinder,DOHC,16-valve,liquid-cooled
  • Max. Power/rpm(kW/rpm)54/11000
  • Max. Torque/rpm(N·m/rpm)48/9500
  • Displacement(cc)470
  • Bore × Stroke (mm)59×43
  • Engine Cycle4-Stroke
  • Compression Ratio12:1
  • Fuel deliveryBOSCH EFI
PREV
NEXT

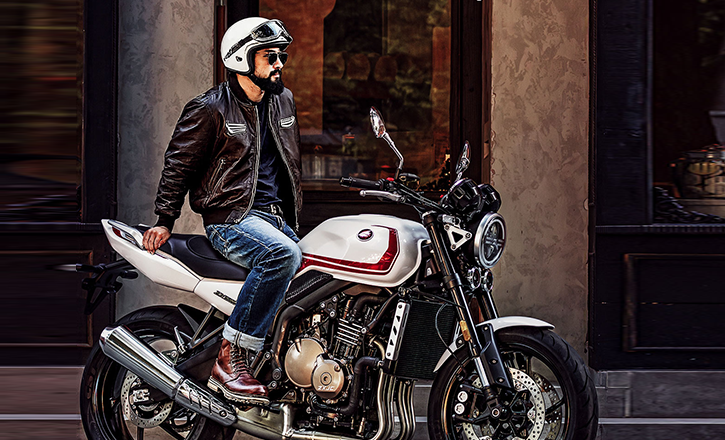

Timeless Design, Modern Comfort

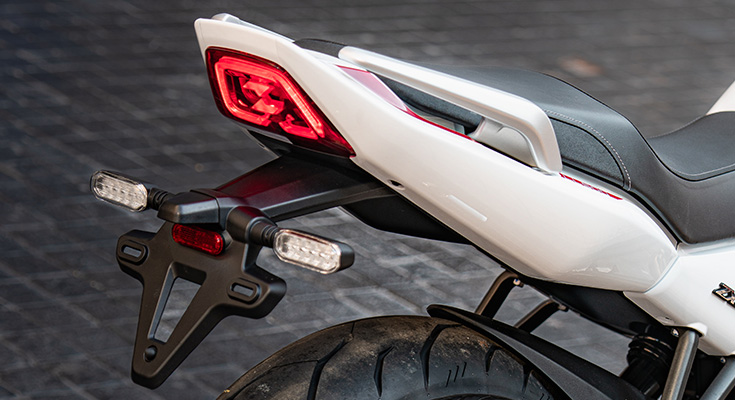

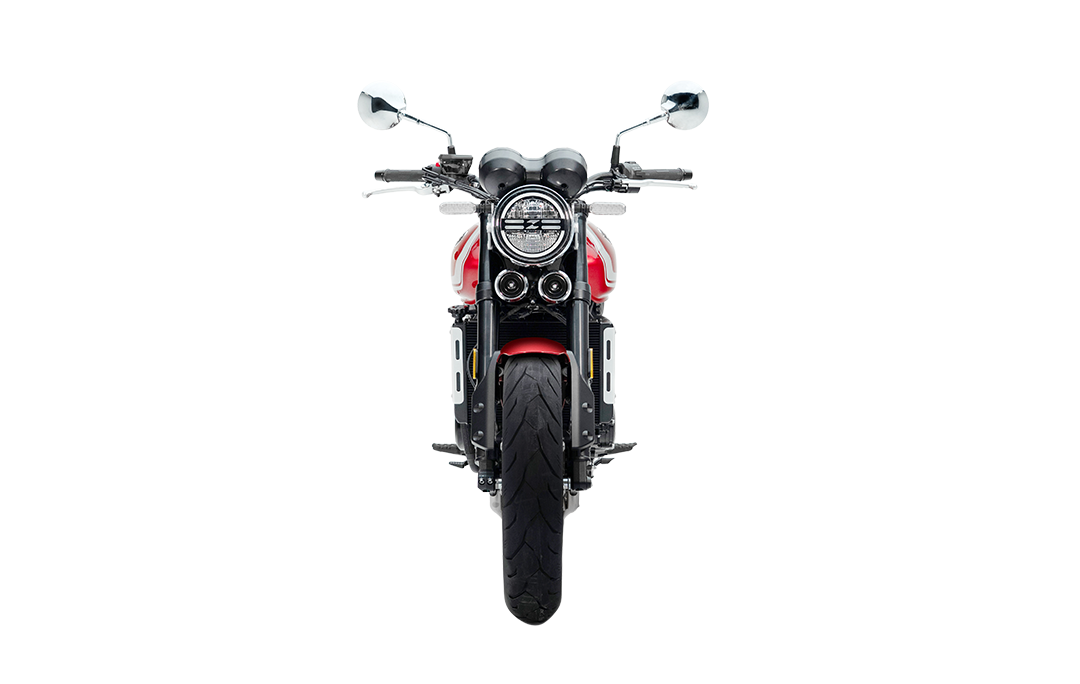

The 500F's aesthetic is a direct tribute to iconic Japanese naked bikes, featuring a timeless round LED headlight and a clean tail section. Its thoughtfully designed ergonomics are highlighted by a comfortably padded seat and a relaxed riding posture that feels natural and relaxed. The low, 795mm seat height instills confidence at a stop, making it an exceptionally approachable machine for both new and seasoned riders.

Refined Four-Cylinder Heart

Central to its appeal is the smooth, 470cc inline-four engine, renowned for its satisfying and potent exhaust note. This characterful powerplant is complemented by a comprehensive safety suite, including dual-channel ABS and switchable traction control. The fully adjustable inverted front forks and capable braking system work in harmony to provide precise handling and instill a deep sense of confidence on the road.

Effortless and Engaging Performance

Tailored for real-world enjoyment, with a torque-rich delivery that makes city riding effortless and highway overtaking brisk. The engine's flexible nature is matched by its willingness to rev, producing an exhilarating soundtrack that enhances the riding experience. Combined with a comfortable, confidence-inspiring chassis and a practical 350km+ range, the 500F proves to be a versatile companion for everything from daily commutes to leisurely weekend tours.

DETAILS

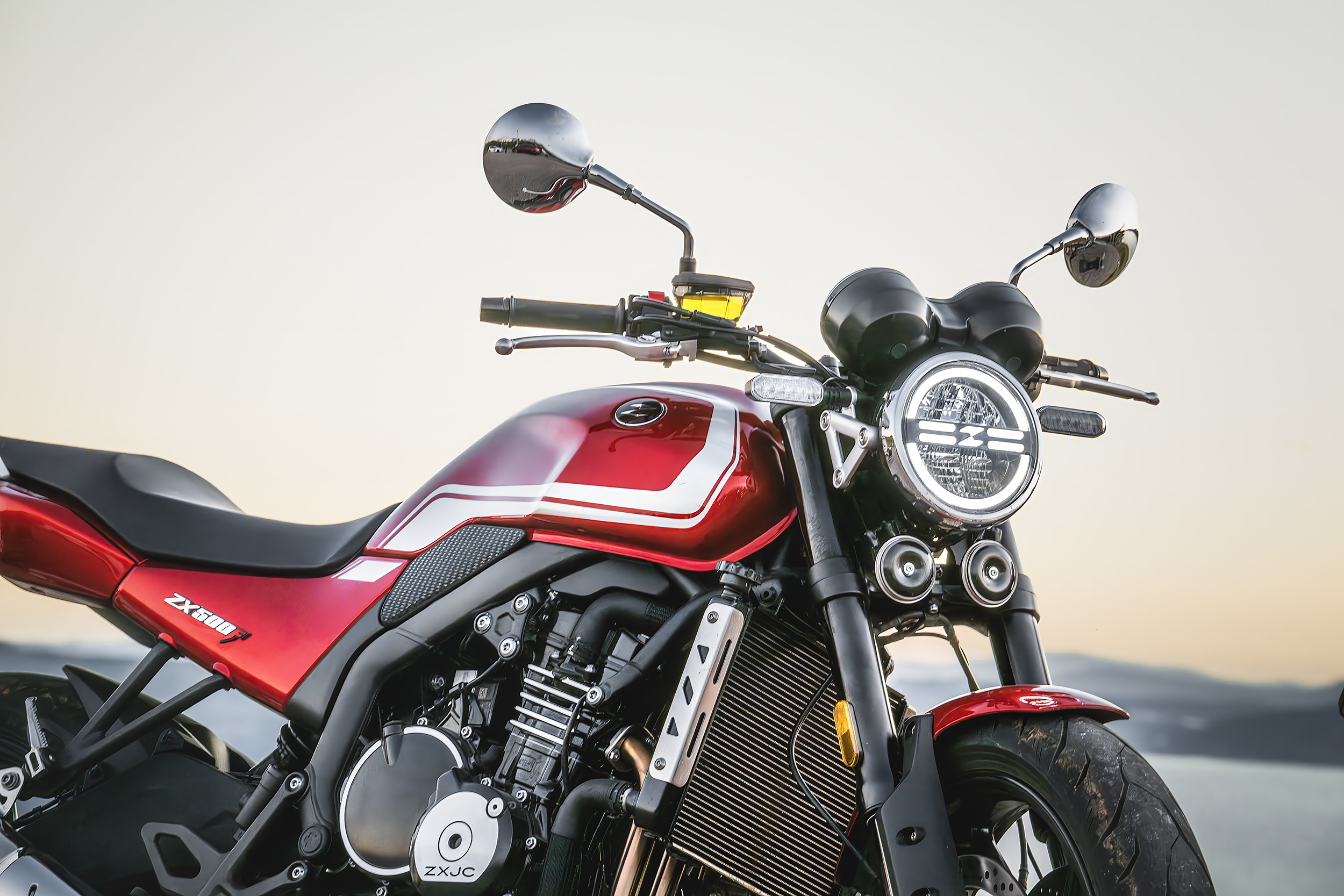

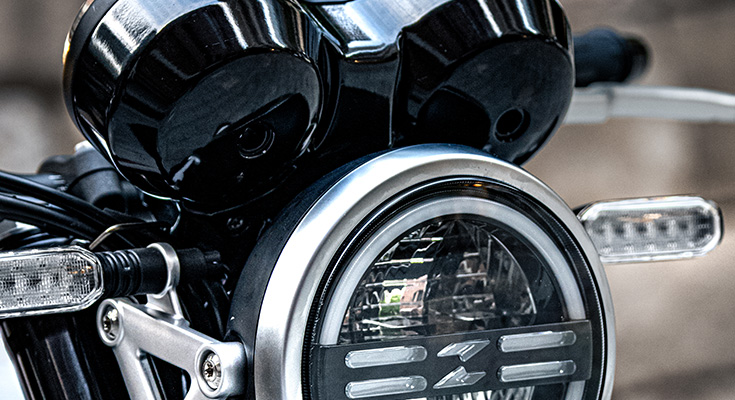

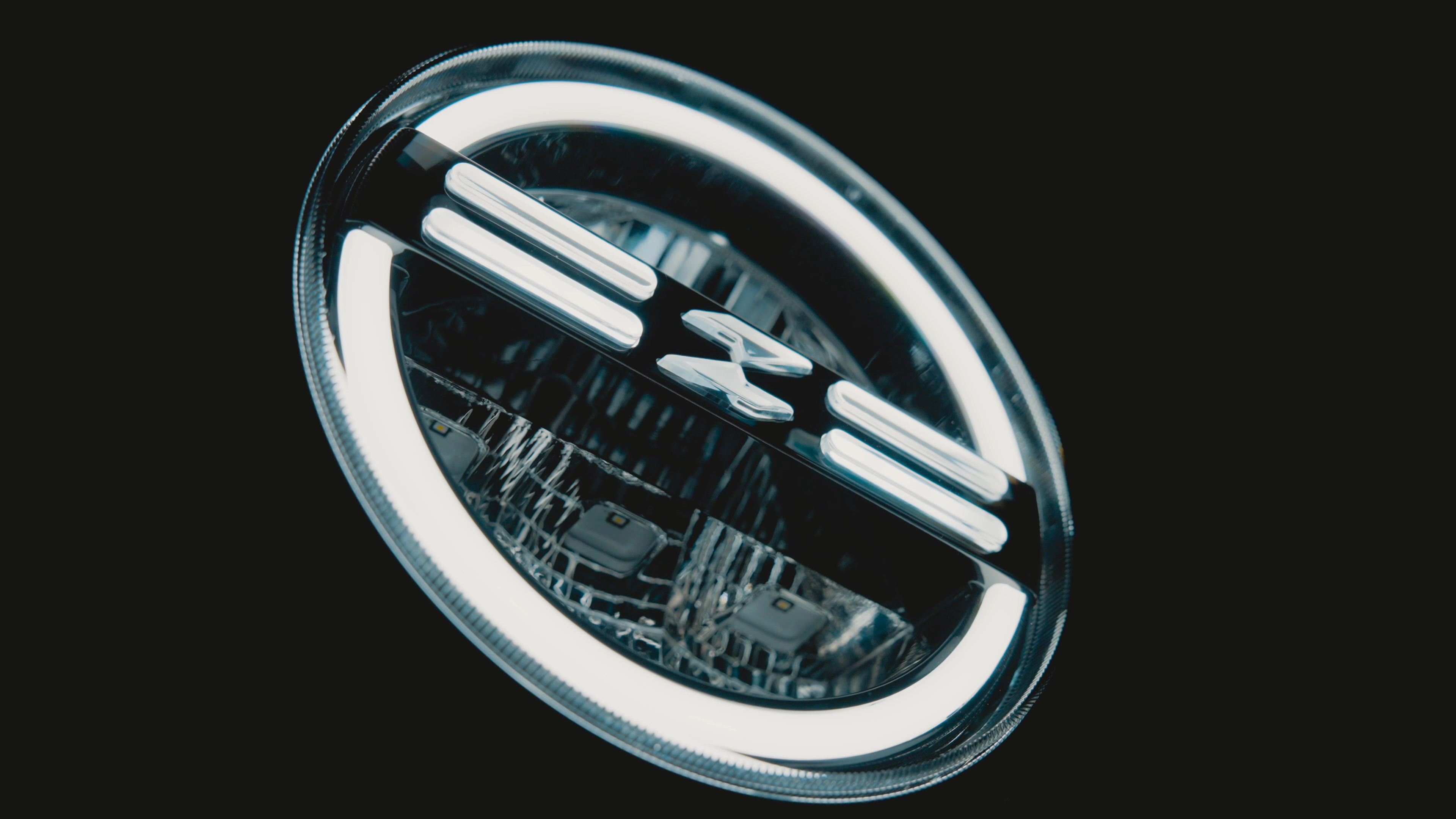

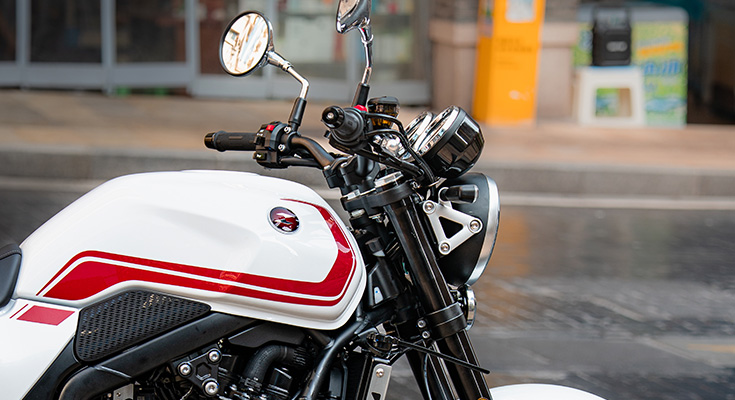

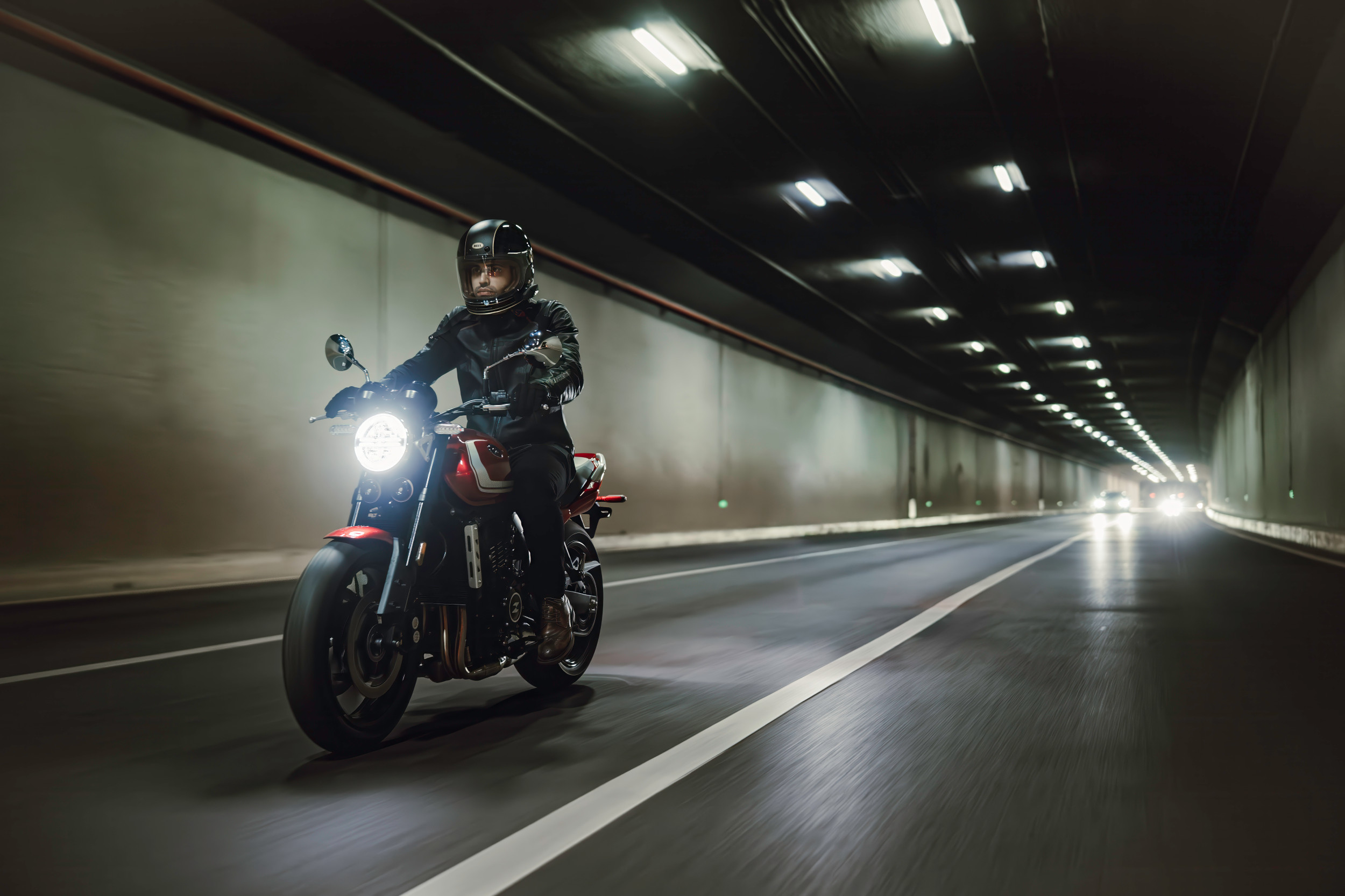

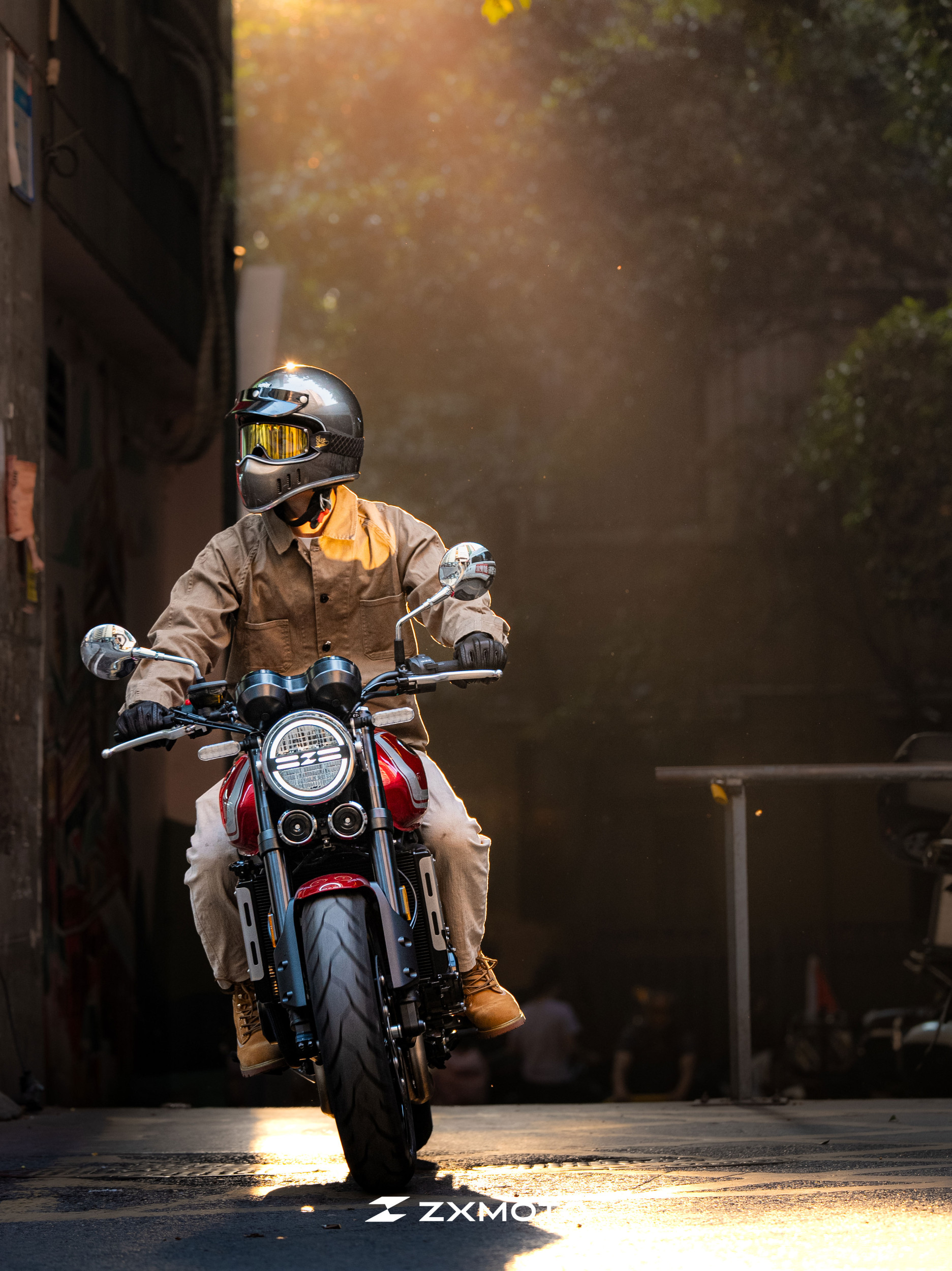

Classic round headlight with a built-in LED module.

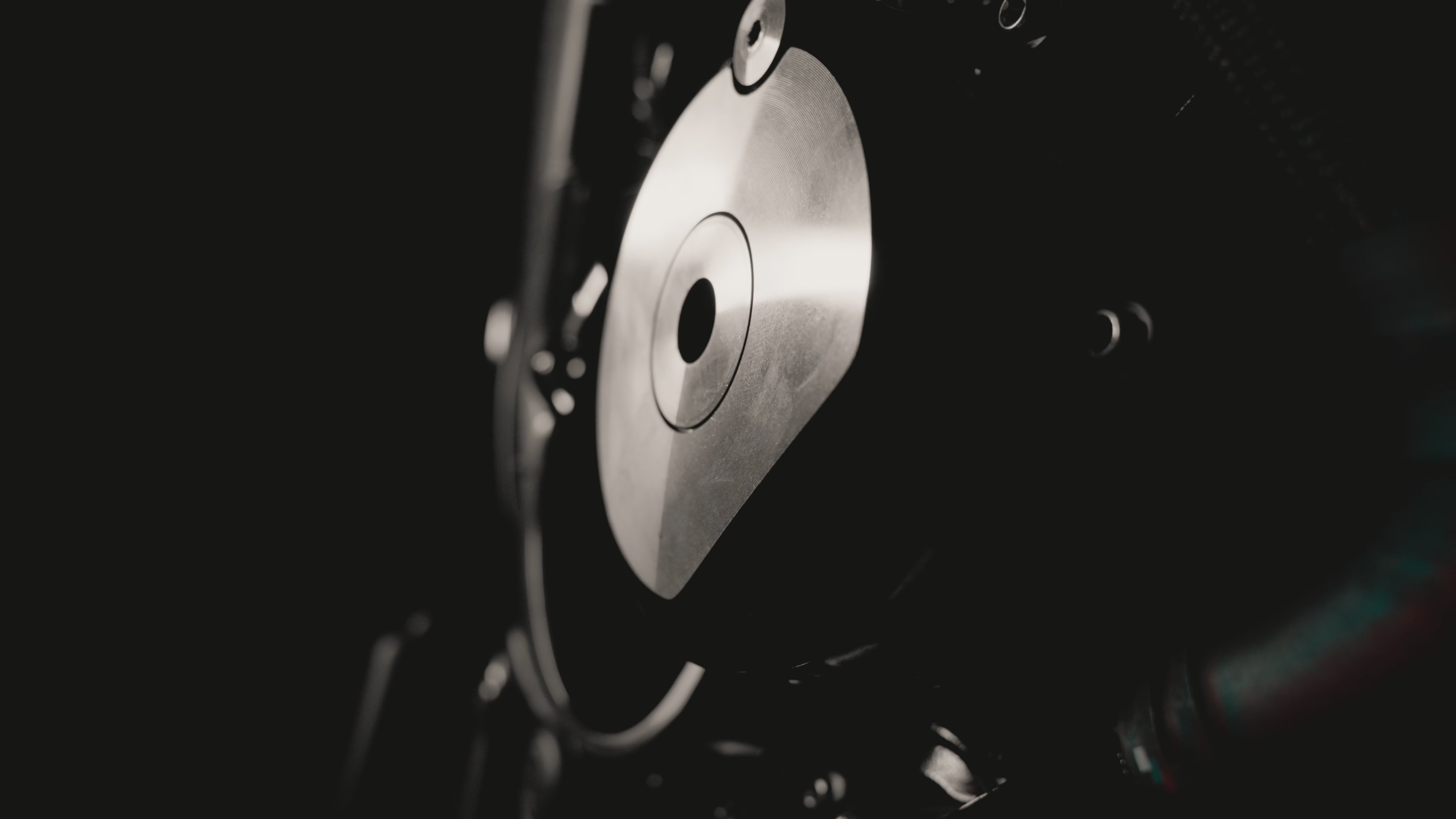

Engine polished finish

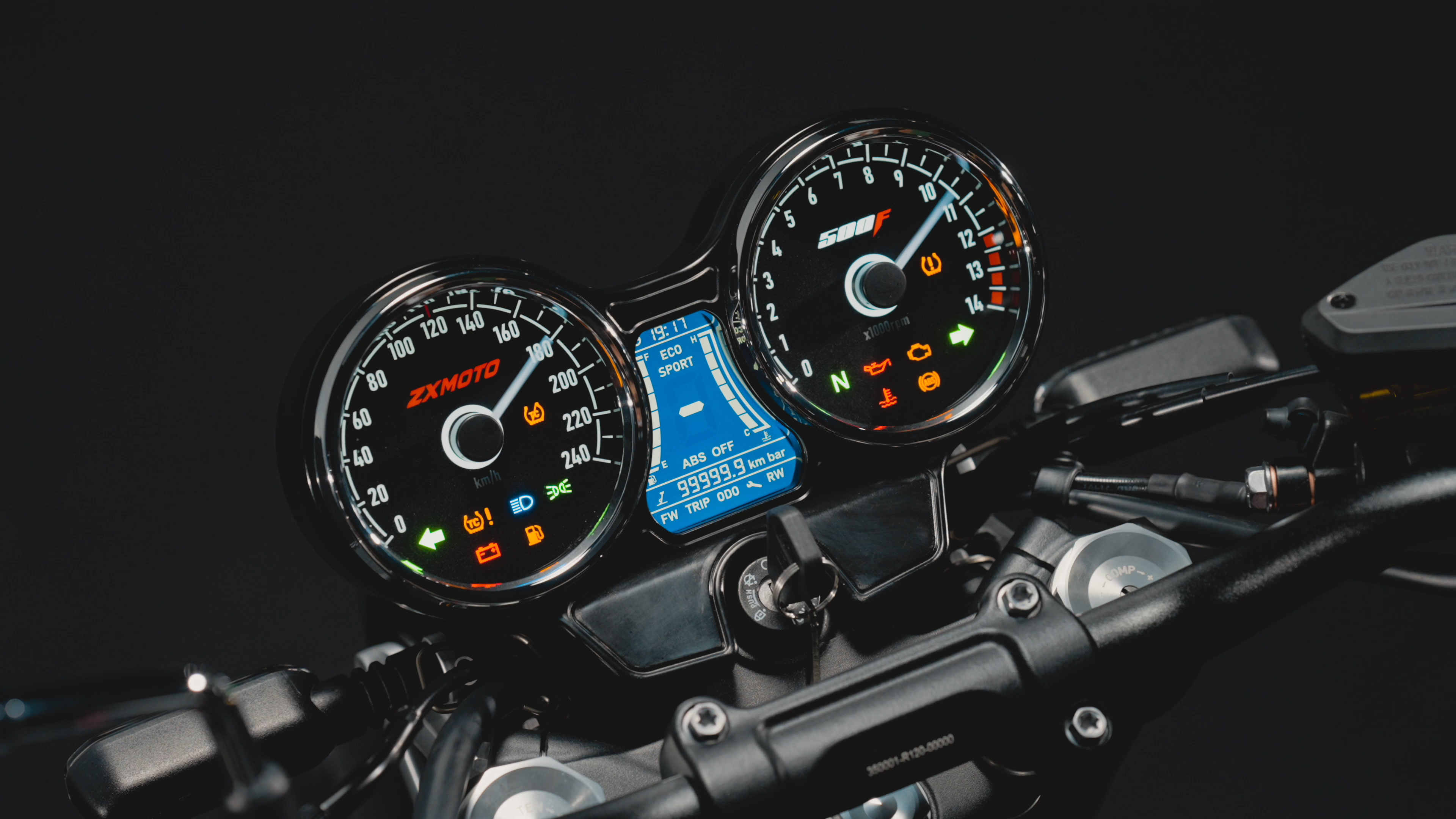

Classic dual round electronic pointer instrument cluster.
