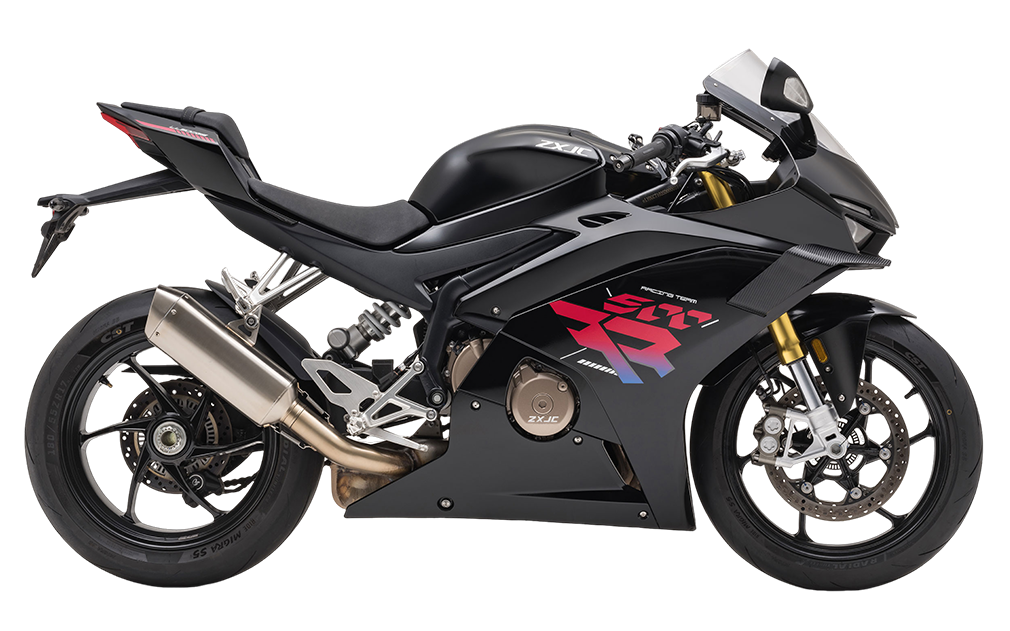

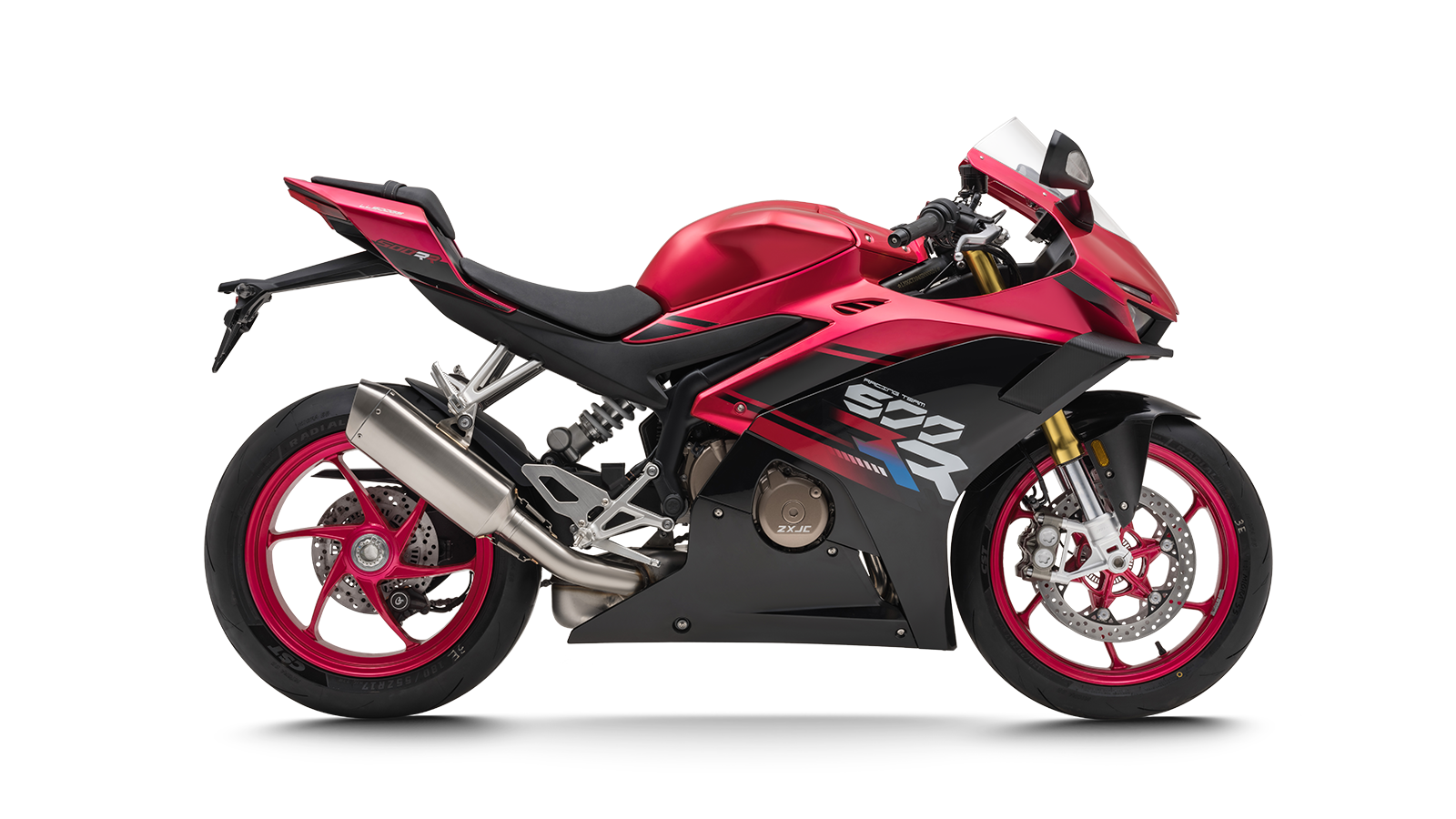

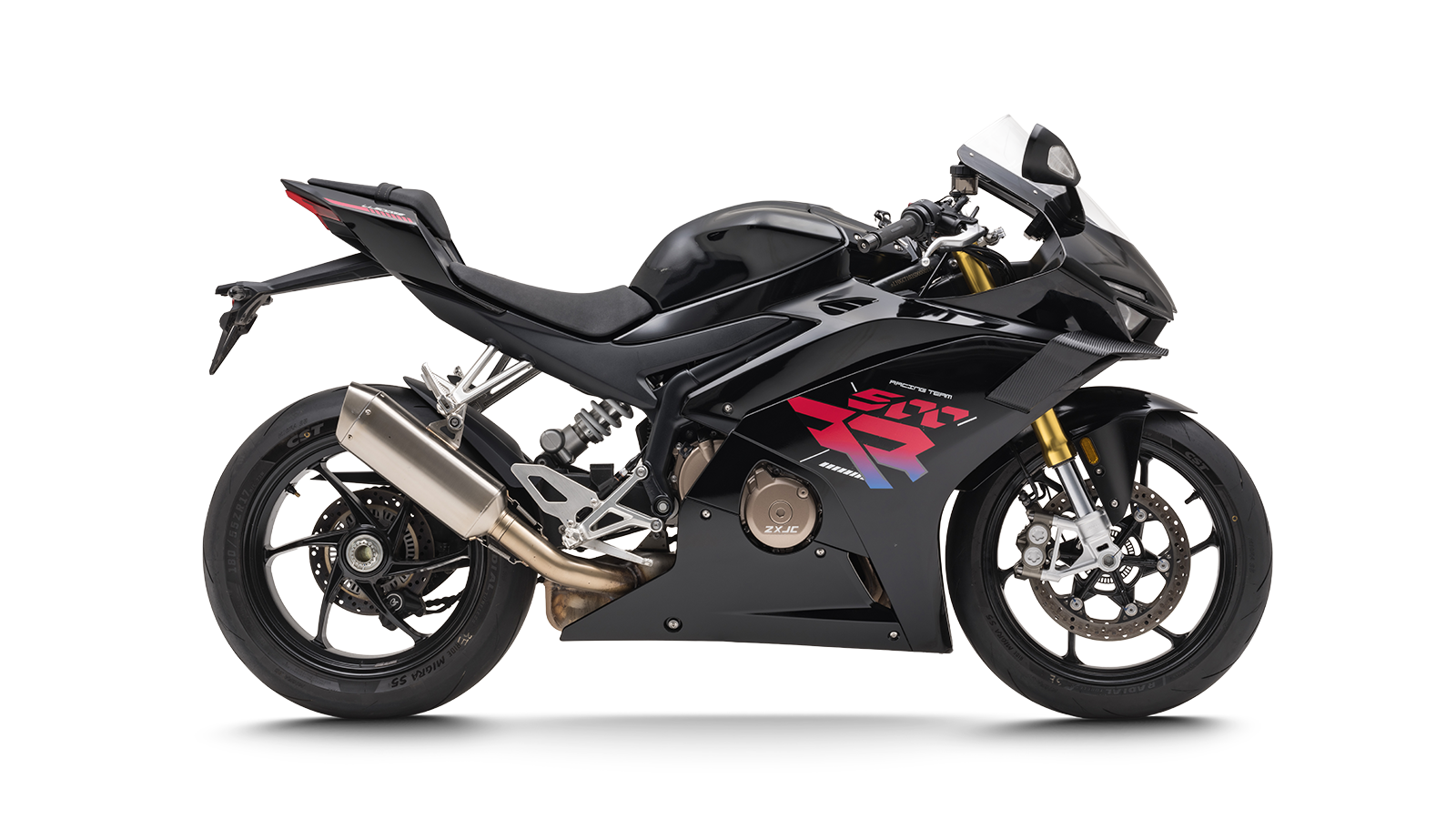

COLOR

470

Displacement(cc)

62 /13500

Max. Power(kW/rpm)

46/11500

Max. Torque(N.m/rpm)

168

Curb Weight(kg)

SPECS
  • 500RR
  • ENGINE
  • CHASSIS
  • DIMENSIONS
  • Engine type4 inline-cylinder,DOHC,16-valve,liquid-cooled
  • Max. Power/rpm(kW/rpm)62/13500
  • Max. Torque/rpm(N.m/rpm)46/11500
  • Displacement(cc)470
  • Bore × Stroke (mm)59×43
  • Compression Ratio12.9:1
  • Fuel deliveryBOSCH EFI
  • Clutch TypeWet multi-plate slipper clutch
  • FrameOne-piece steel tubula braided frame
  • Rear swing armSingle-sided swing arm(aluminum alloy)
  • Front suspensionInverted φ 41mm, fully adjustable preload and damping
  • Tire CST S5
  • Front wheel size120/70 ZR17
  • Rear wheel size180/55 ZR17
  • RimAluminum alloy cast front MT3.5*17 rear MT5.5*17
  • Front caliper4-Piston opposed caliper (TAISKO)
  • Front disc300mm dual floating disc
  • Rear caliper2-piston opposed caliper(TAISKO)
  • Rear disc220mm single disc
  • Length×Width×Height(mm)2005x705x1125
  • Wheelbase(mm)1395
  • Seat height(mm)800
  • Fuel capacity(L)15
  • Curb weight(kg)168
  • Net weight(kg)158
  • Steering angle(°)25
  • Rake Angle(°)24.5
PREV
NEXT

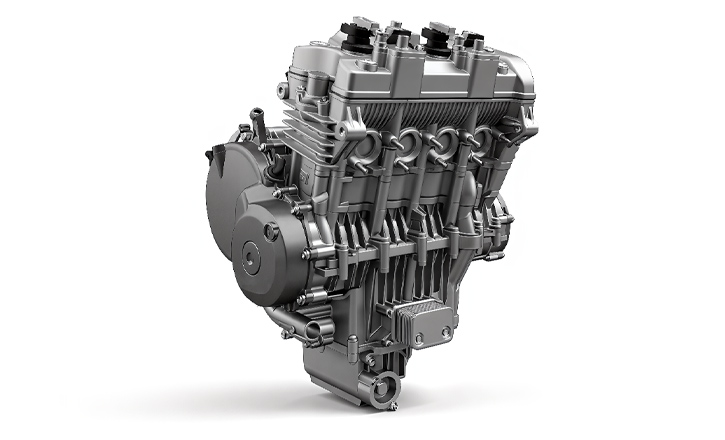

Powertrain: High-Revving Inline-4 Engine
  • 470cc inline-4 cylinder, DOHC, 16-valve, liquid-cooled engine with a 12.9:1 compression ratio.

  • Delivers maximum power of 62 kW (84 hp) @ 13,500 rpm and maximum torque of 46 N·m @ 11,500 rpm.

  • Equipped with a BOSCH EFI system and a wet multi-plate slipper clutch for smooth and responsive gear shifts.

  • Top speed of 235 km/h, with strong power output across the rev range, making it suitable for both track and street riding.

Performance: Track-Proven Excellence
  • 0-100 km/h acceleration in just 3.4 seconds, competing with 600cc-class sport bikes.

  • Outstanding braking performance: best braking distance of 37 meters.

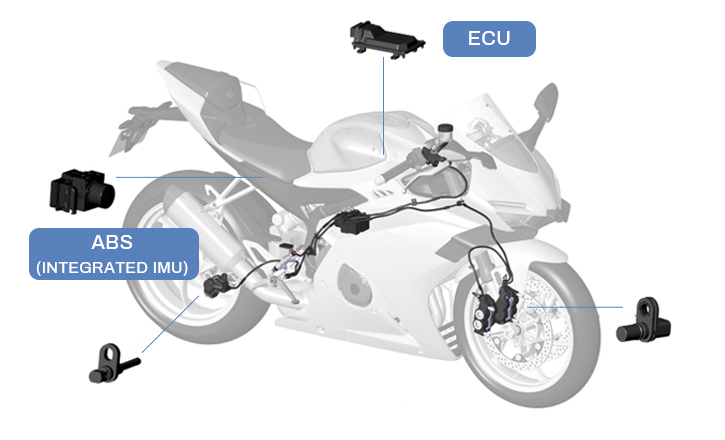

  • Features cornering ABS with a 6-axis IMU for enhanced stability and safety during aggressive riding.

  • Fully adjustable front and rear suspension, paired with high-grip CST S5 semi-slick tires, ensures excellent cornering grip and handling feedback.

Design Philosophy: Lightweight and Agile
  • Curb weight of only 168 kg, with aluminum swingarm and forged footpegs for reduced unsprung weight.

  • Compact dimensions (2005×705×1125 mm) and a 1395 mm wheelbase, combined with an 800 mm seat height, offer an ideal riding position for agility and control.

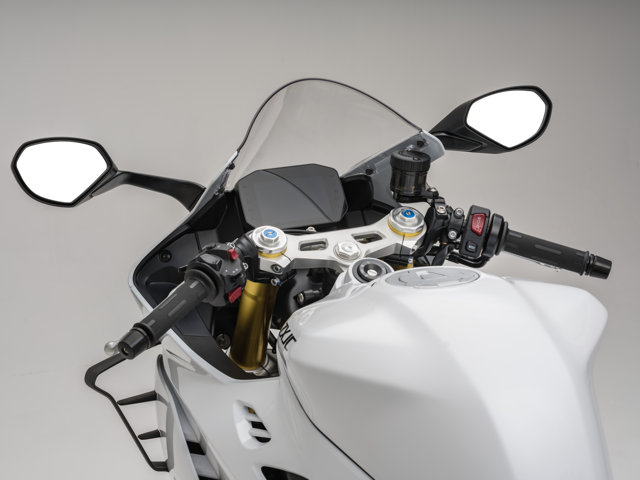

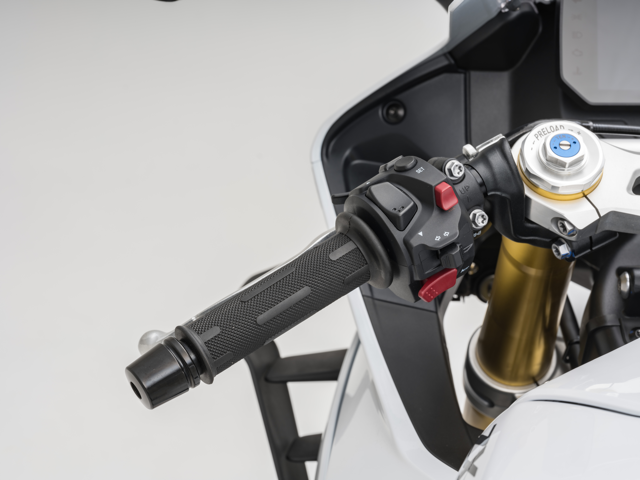

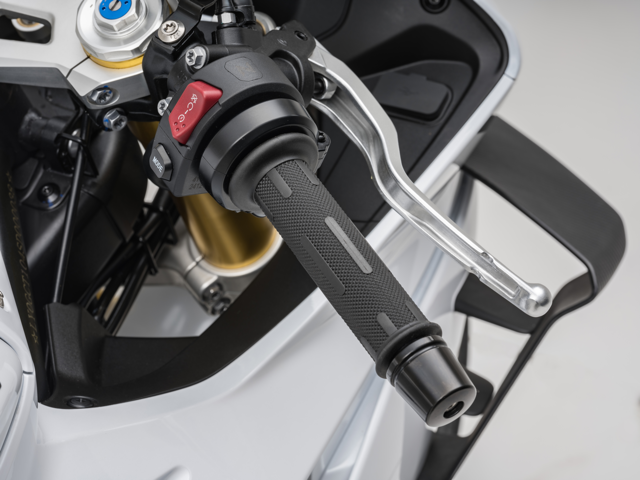

  • Split-style handlebars and optional single-sided swingarm design improve mass centralization and handling precision.

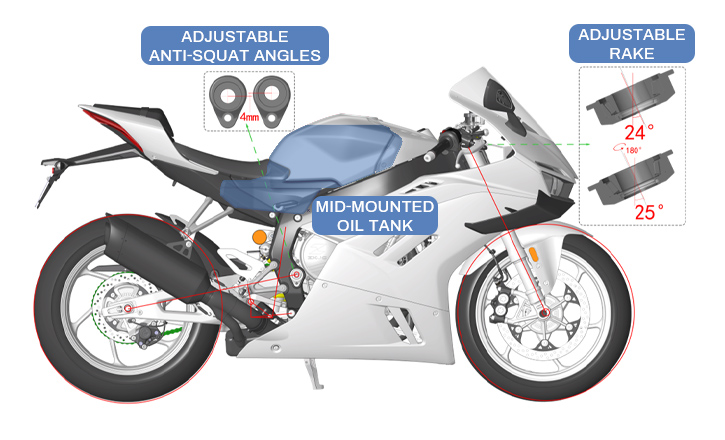

  • Adjustable rake and anti-squat angles allow riders to fine-tune geometry for varying riding conditions.

DETAILS

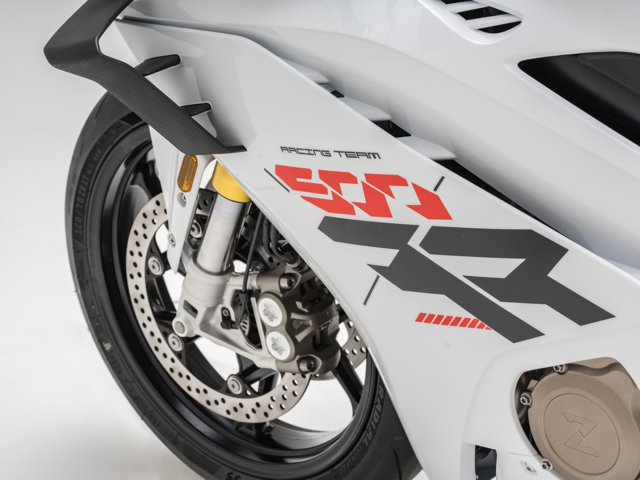

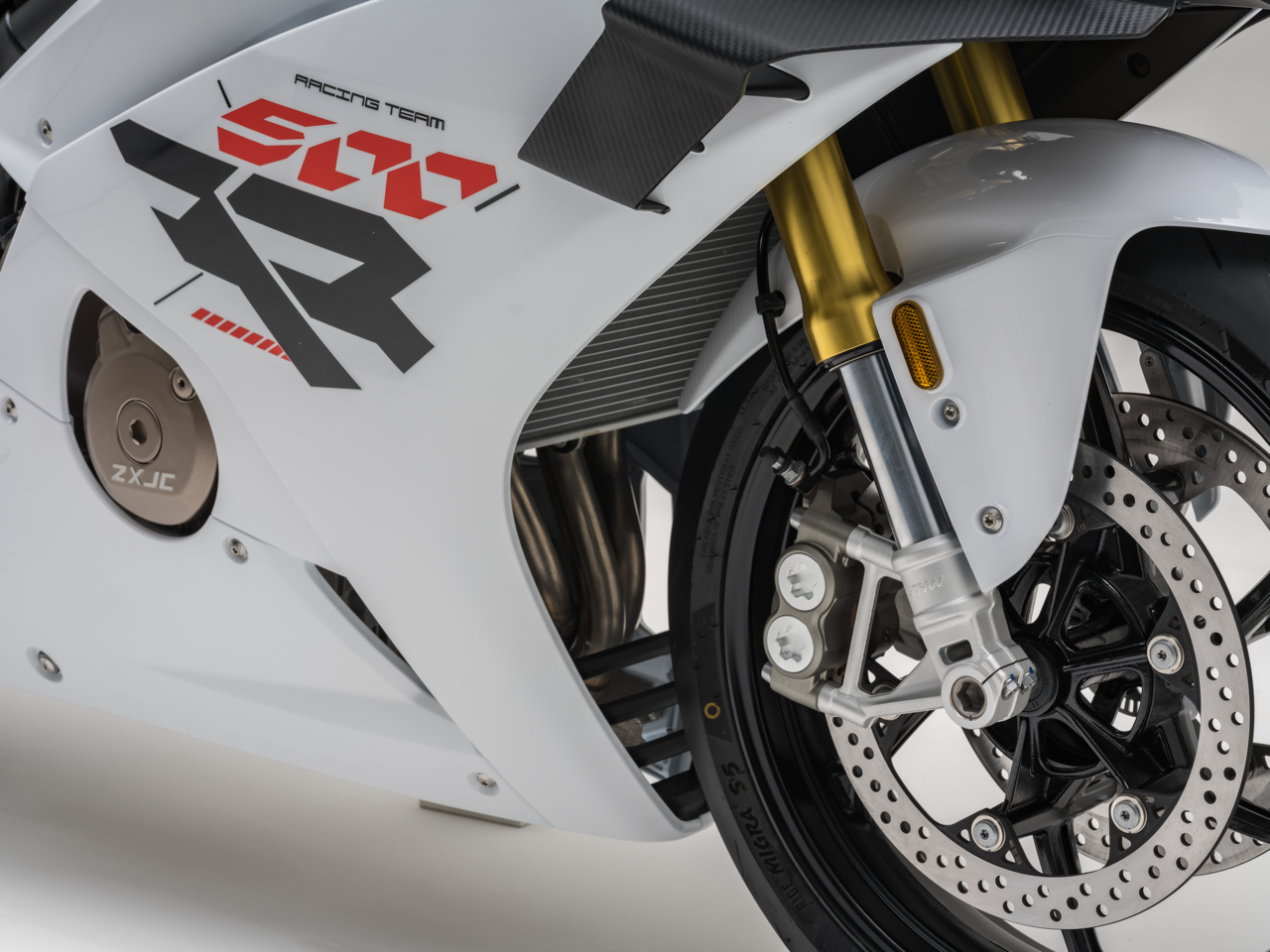

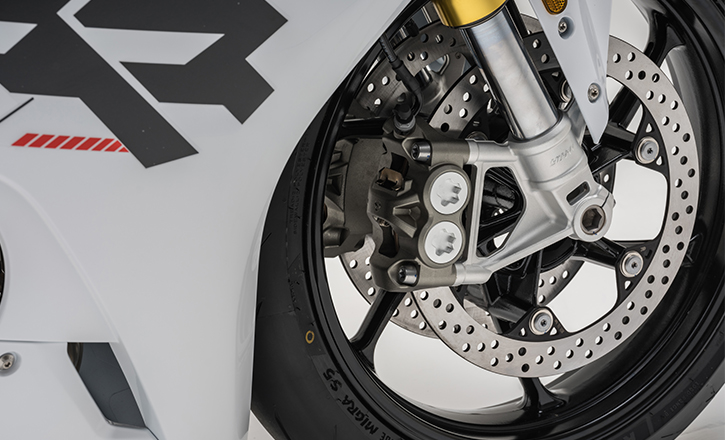

Dual 300mm floating front discs with 4-piston opposed calipers and direct-push master cylinder; 220mm rear disc with 2-piston caliper.

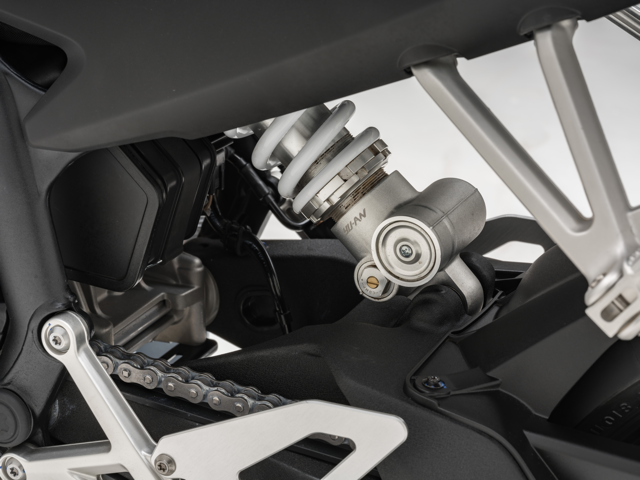

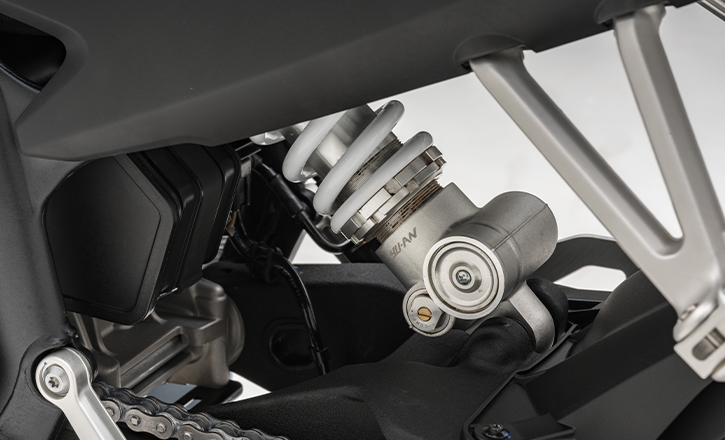

41mm inverted fully adjustable front fork; centrally mounted fully adjustable rear monoshock.

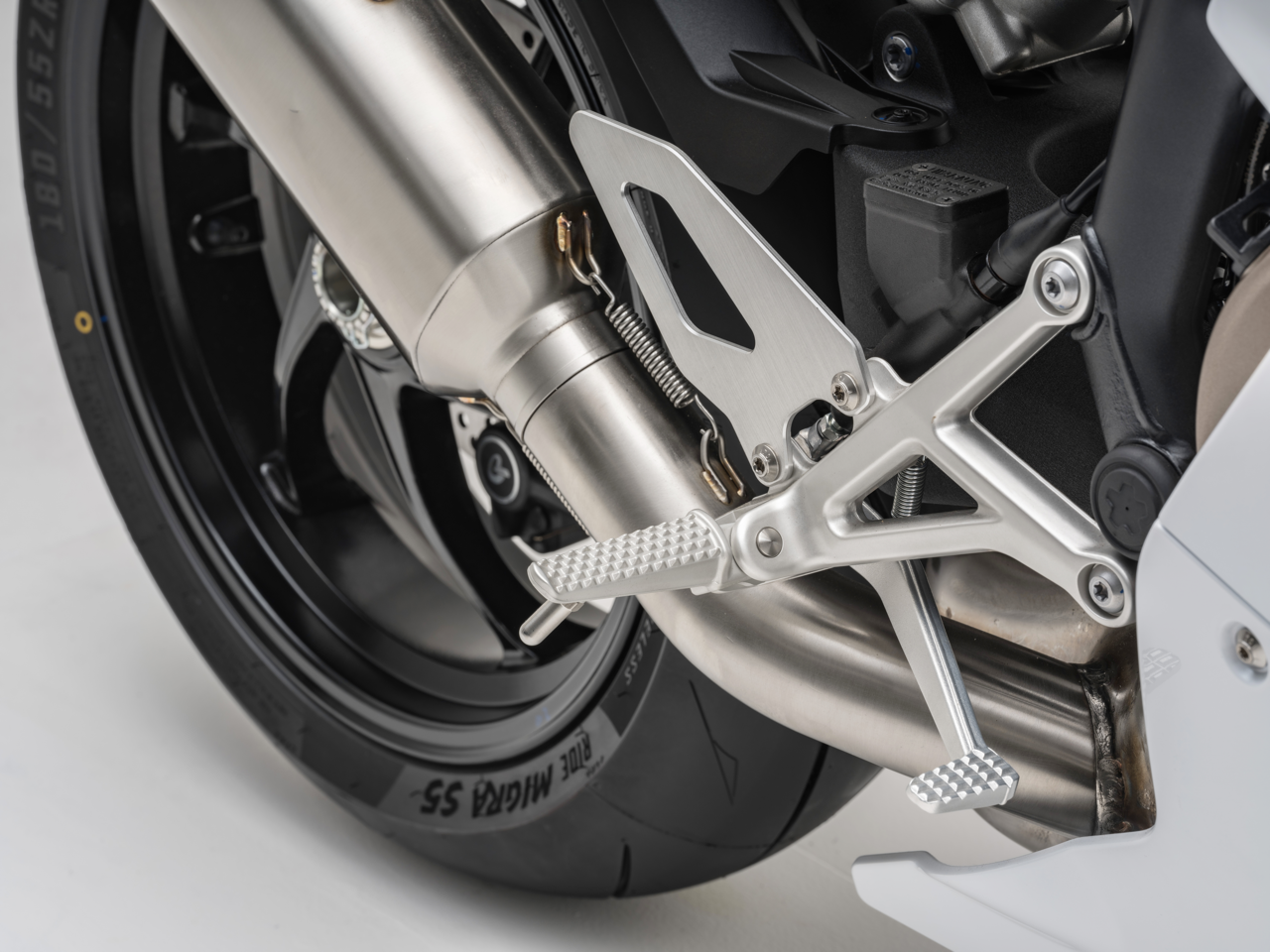

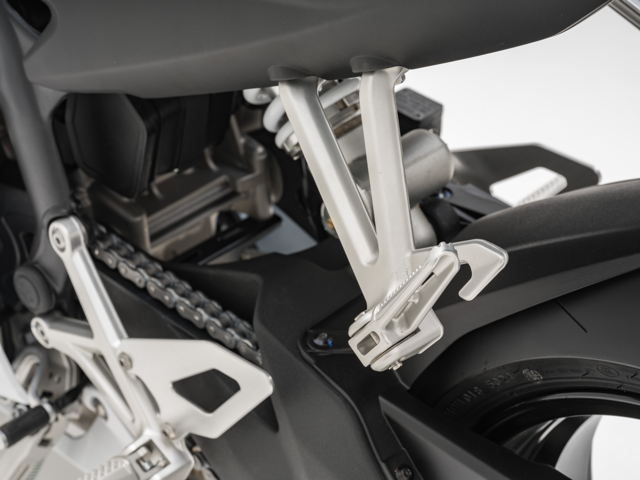

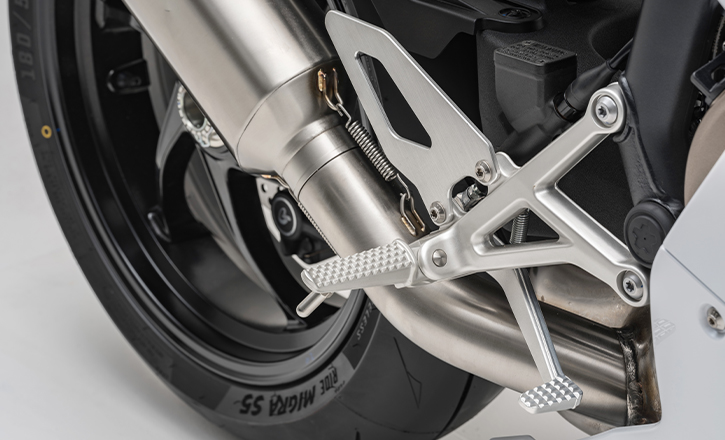

CNC-Machined Forged Aluminum Alloy Footpegs

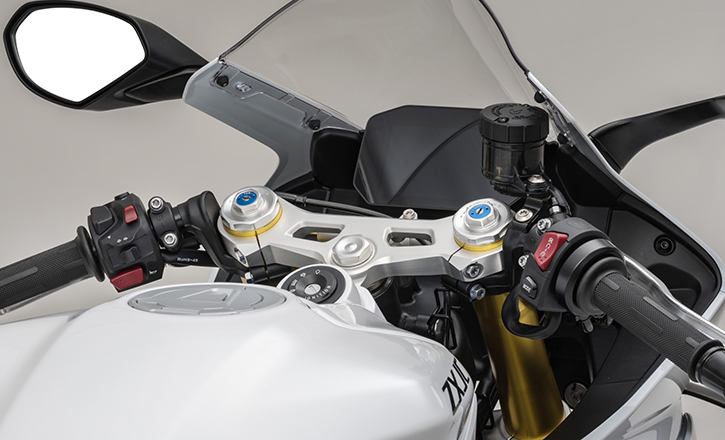

Forged Aluminum Alloy Steering Stem Yoke

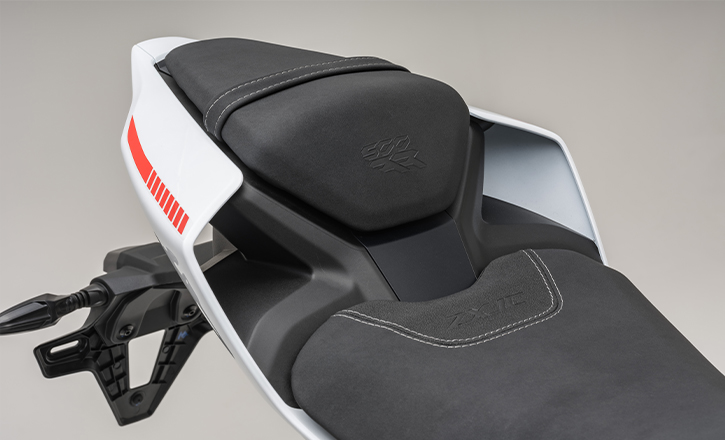

Anti-slip material seat cushion;Hollowed-out floating taillight design

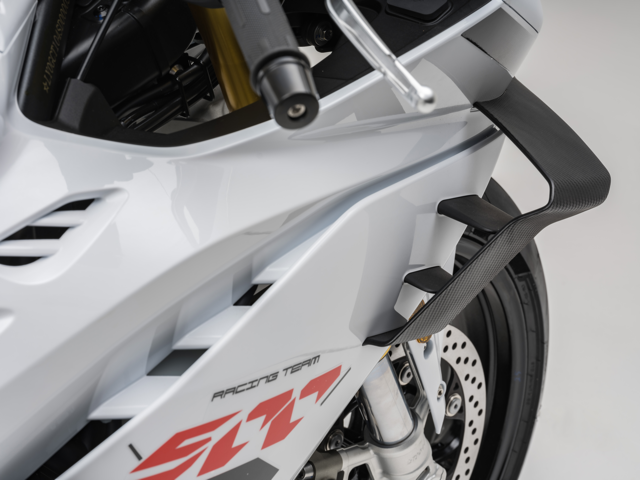

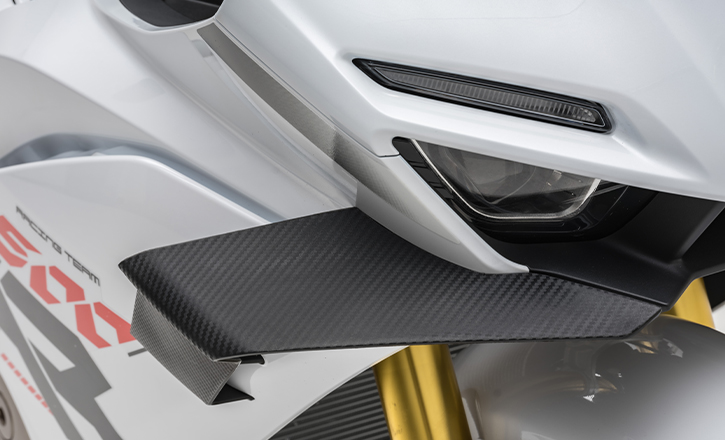

Spoiler and Headlight Eyebrow Design
